HeBei Thunder Drill Technology Co.,Ltd. produce drilling rigs ,air compressor,drill rod ,DTH hammer , drill bits etc.
Out products are mainly used for water well , mining , exploration in oil ,gas ,geothermy.
Our company sticks to the idea of "market-oriented,user-centric,quality of survival,innovation for development''.our products have been exported to Russia ,India,Pakistan,Libya,Africa and other countries.
Our company adhere to the tenet of "mutual benefit, common development ,to benefit of the public, contributing to the society" we will do our best to become machinery equipment enterprise with world -class management, technology and quality by continuously improving our products quality.
Thunder Technology will be expert of drill well in China as well as world.
TDD-200
TDD-300
TDD-400
TDD-500
TDD-600
TDD-600S
TDD-800
TDD-800S
TDD-1000
TDD-1200
TDD-1500

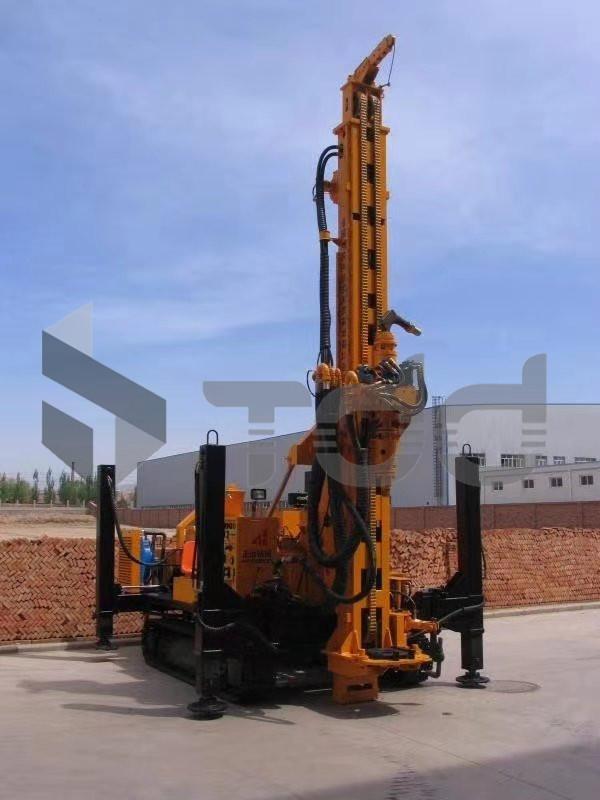

- This drill rig with light and flexible features for wide civilian market.
- Simple but reliable design with adequate rotary torque and lifting force for widely used in civilian market.
- Hoist and winch able to lift drill tools and accessories up to 1500kg,reducing workload of operators.
- Rotation with two speed adjustable for different hole ranges and rock conditions
- Product Technical Parameters:
|
technical parameter
|
Unit
|
TDD-300
|
TDD-300L
|
TDD-300S
|
|
Max drilling depth
|
M
|
300
|
300
|
300
|
|
Drilling Diam
|
MM
|
150-300
|
150-300
|
150-300
|
|
Air Pressure
|
Mpa
|
1.05-3.45
|
1.05-3.45
|
1.05-3.45
|
|
Air Consumption
|
M3/min
|
16-55
|
16-55
|
16-55
|
|
Drilling pipe diam
|
M
|
3
|
3
|
3
|
|
Drilling pipe diam
|
MM
|
89
|
89
|
89
|
|
Main shaft pressure
|
T
|
4
|
4
|
7
|
|
Lifting force
|
T
|
8
|
8
|
12
|
|
Fast lifting speed
|
M/min
|
30
|
45
|
30
|
|
Fast forwarding speed
|
M/min
|
50
|
90
|
50
|
|
Drilling efficiency
|
M/h
|
10-35
|
10-35
|
10-35
|
|
Max rotary torque
|
Nm
|
3500
|
4000
|
5000
|
|
Max rotary speed
|
R/min
|
90
|
120
|
100
|
|
Moving speed
|
Km/h
|
2
|
3
|
3
|
|
Climbing capacity
|
Slope
|
21°
|
21°
|
21°
|
|
Drilling rig weight
|
T
|
8
|
8
|
8
|
|
Outer dimensions
|
M
|
6.4X2.08X2.8
|
6.4X2.08X2.8
|
6.4X2.08X2.8
|
|
Working condition
|
Loose layer and bedrock
|
|
Drilling method
|
Hydraulic rotation and propuision,DTH Hammer drilling,Mud Drilling
|
|
Suitable hammer
|
Medium and high air pressure series
|
1、TDD have been focusing on well drilling field for 16 years,TDD ,Born for drilling.
2、Rich experience on well drilling construction sites,
3、Technical support and whole drilling equipment supplied by TDD company
4、TDD is awarded the national patents on many inventions,TDD continue to increase investment in research and development, technological innovation.
5、TDD offer professional logistics solution based on LCL and FCL by sea ,also land way.
6、If you want to know more products ,please enter TDD official website:http://www.jingangsupuman.com
